Checkweigher Manufacturer

The checkweigher series includes models EW-220-1000, EW-300-1000, ER-450-8000, and EW-450-25KG, with weighing ranges from 3g to 25kg, accuracy of ±0.3g to ±10g, and throughputs up to 100 pcs/min. Featuring German HBM original load cells, FPGA hardware filters, and intelligent self-learning technology, these machines come with 7-inch touchscreens, 40 product presets, and high-capacity sorting logs. Rejection methods include air jet, air pusher, flipper, and drop belt, ensuring precise weight control.

About
Jiaxing K-Line Machinery Co., Ltd.
Jiaxing K-Line Machinery Co., Ltd.
Jiaxing K-Line Machinery Co., Ltd. is a comprehensive service provider of automated packaging machinery, focusing on the mid-to-high-end domestic and overseas markets.
Our core team has been engaged in the automated packaging industry for nearly two decades. The entire process of product R&D, design, and manufacturing is strictly supervised by senior technical staff. Drawing on well-established technologies, we deliver high-performance and highly reliable automated packaging systems.
Located in Xiuzhou District, Jiaxing City, the company sits on the economically prosperous and conveniently accessible Hangzhou-Jiaxing-Huzhou Plain, adjacent to major Yangtze River Delta cities including Shanghai, Hangzhou, Ningbo, and Suzhou.
Leveraging the region's advantages in talent, information, and precision processing, we specialize in the R&D, production, and sales of vertical automatic weighing packaging machines and supporting conveying systems.
We are a China OEM Checkweigher Manufacturer and Custom Checkweigher Supplier, offer a complete product portfolio, covering vertical automatic packaging machines, automatic premade pouch packing machines, conveying equipment, customized non-standard machinery, branded weighing equipment, back-end packing & sorting equipment, and on-line checking equipment. We are capable of undertaking integrated design and turnkey implementation of full-plant automated packaging systems. Our products are widely applied in multiple industries such as confectionery, puffed food, biscuits, powder materials, nuts, frozen food, agricultural and sideline products, chemical materials, and hardware products.
The company has built an all-round marketing network supported by a standardized full-cycle after-sales service system, providing one-stop full-process service guarantees for global customers. We take international quality, Taiwan technology, and mainland pricing as our market foothold, and pursue win-win development together with employees and partners.
Certificates of Honor
  • CE
  • Test  Draft Report
  • Invention Patent
  • Utility Model Patent
  • Utility Model Patent
  • Utility Model Patent
  • Utility Model Patent
  • Utility Model Patent
  • Utility Model Patent
  • Utility Model Patent
  • Utility Model Patent
  • Utility Model Patent
News
Checkweigher Industry knowledge

Jiaxing K-Line Machinery Co., Ltd. is a China-based Checkweigher manufacturer serving food, pharmaceutical and chemical lines. Our checkweigher series covers four production models from 3 g to 25 kg, with accuracy from ±0.3 g to ±10 g and throughput up to 100 packs/min. Each unit is built around German HBM load cells, FPGA hardware filtering and a 7-inch touchscreen with 40 product presets, so the machine arrives ready for your line rather than as a generic off-the-shelf unit.

Checkweigher Range and Positioning

We are an OEM checkweigher manufacturer and custom checkweigher supplier, not just a component assembler. The four models are selected by pack size, weight range and line speed:

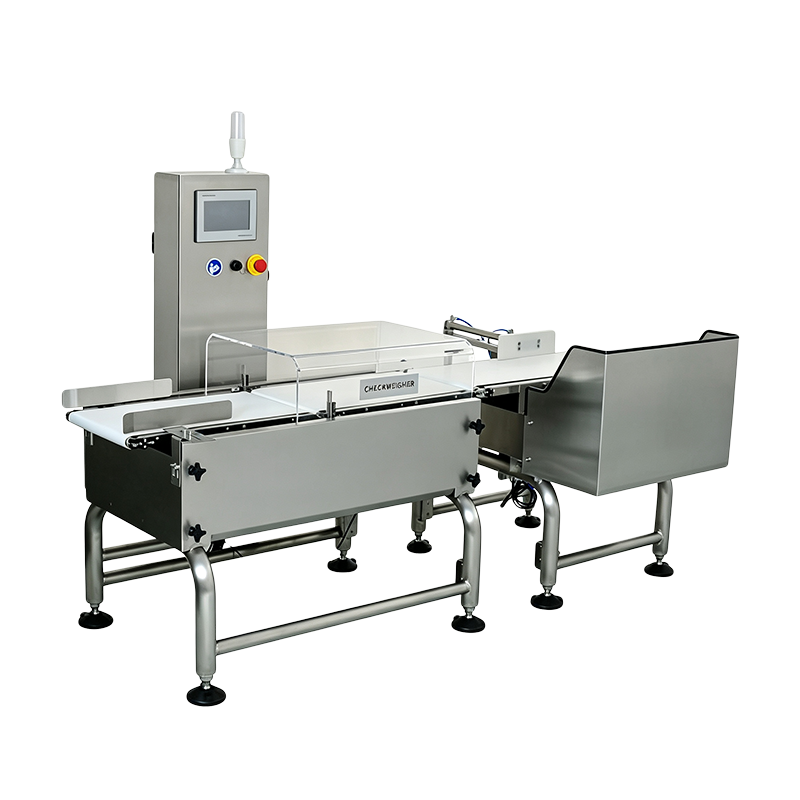

EW-220-1000

Automatic linear weighing machine for small sachets and pouches in confectionery, nuts and snack lines.

EW-300-1000

High-precision linear checkweigher for mid-size bags where tighter weight control is required.

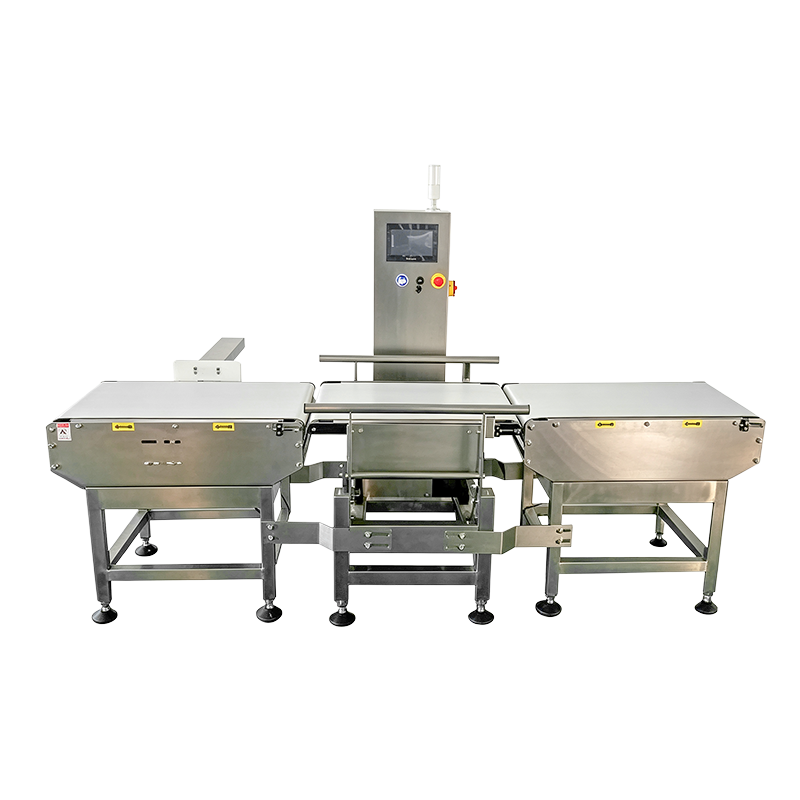

ER-450-8000

High-capacity belt checkweigher for larger pouches, cartons and heavier packaged goods.

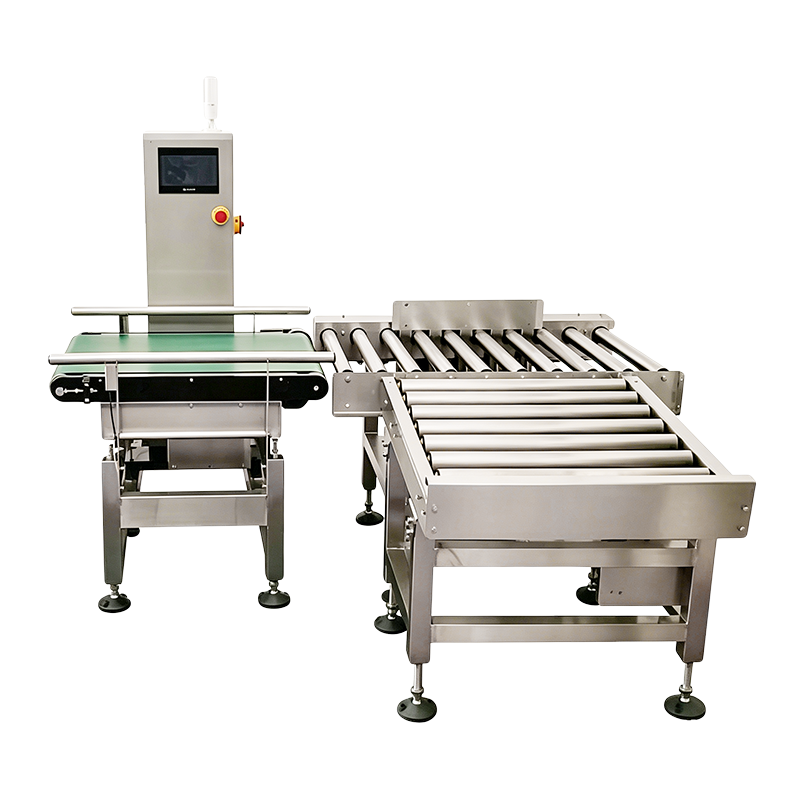

EW-450-25KG

Heavy-duty linear checkweigher for bulk bags, boxes and industrial packs up to 25 kg.

Application Fit by Industry

Checkweighers are installed after the packaging machine to remove underweight and overweight packs before they enter the carton or palletizing stage. In food plants they protect recipe compliance and reduce giveaway; in pharmaceutical and chemical plants they support batch weight traceability and line documentation.

  • Confectionery and snacks: EW-300-1000 for fast-moving pillow bags and pouches.
  • Frozen food and agricultural products: ER-450-8000 belt model handles wet, cold and unevenly shaped packs.
  • Powders, granules and chemicals: EW-220-1000 for small packs and EW-450-25KG for bulk bags.
  • Pharmaceutical and nutraceutical: linear models with touchscreen data logs for batch review.

Load Cells, Filtering and Accuracy

All models use original German HBM load cells. FPGA hardware filters remove vibration noise from the conveyor, while intelligent self-learning technology adapts to changing belt and product conditions. The result is stable accuracy at production speed, not just under laboratory conditions.

Model Weighing Range Accuracy Throughput Typical Fit
EW-220-1000 3 g – 1 kg ±0.3 g up to 100 pcs/min Sachets, small pouches
EW-300-1000 up to 1 kg ±0.5 g up to 100 pcs/min Snacks, candy, nuts
ER-450-8000 up to 8 kg ±2 g up to 80 pcs/min Pouches, cartons, frozen packs
EW-450-25KG up to 25 kg ±10 g up to 40 pcs/min Bulk bags, boxes, industrial packs

Controls, Data and Rejection Options

Every checkweigher is controlled through a 7-inch color touchscreen. The operator interface stores 40 product presets, so changeover between SKUs is a matter of selecting a saved recipe rather than re-teaching the machine. Sorting logs keep high-capacity records for production review and quality documentation.

Four rejection methods are available to match product type and line layout:

  • Air jet: for light sachets and small pouches that can be blown off the belt without contact.
  • Air pusher: for stable bags and cartons that need a firm push into a reject lane.
  • Flipper: for packs that should be diverted without damaging the product or film.
  • Drop belt: for heavier or flexible packs that can be lowered onto a reject conveyor.

Line Integration and Configuration

A checkweigher is a line component, not a standalone scale. We integrate it with upstream Weighing & Dosing Equipment, vertical baggers and downstream conveyors so the reject signal, belt speed and pack spacing are synchronized. For customers building a full inspection section, the same Checking Equipment family includes metal detection and X-ray systems, allowing us to supply a combined unit with one control philosophy.

Belt width, pack spacing, infeed height and reject direction are configured around your existing conveyor height. The machine frame and contact parts can be adapted for food-safe operation, and the control system is set to your required line interface before delivery.

Quality, Installation and After-Sales Support

Jiaxing K-Line operates from its own factory in Xiuzhou District, Jiaxing, with R&D, design and manufacturing supervised by senior technical staff. Our checkweigher program is supported by CE documentation and patented utility model designs. Before shipment, each machine is run with sample packs to confirm accuracy, repeatability and rejection position.

Installation support covers line positioning, leveling, initial setup and operator training. A standardized full-cycle after-sales service network supports remote troubleshooting, spare parts and commissioning assistance for overseas projects. We also supply conveying and Auxiliary Equipment for the same line, so one project team can take responsibility from the packaging machine to the inspection station.

Information We Use to Configure Your Solution

  • Product type, dimensions, pack weight and weight tolerance
  • Line speed in packs per minute and available conveyor height
  • Packaging format: sachet, pillow bag, pouch, carton or bulk bag
  • Reject location, reject lane direction and downstream equipment
  • Power supply, utility conditions and required data output
  • Sample products or pack drawings for acceptance testing

Customer FAQs

What checkweigher models does K-Line offer?

We offer four models: EW-220-1000 for small packs from 3 g to 1 kg, EW-300-1000 for high-precision weighing up to 1 kg, ER-450-8000 for high-capacity belt weighing up to 8 kg, and EW-450-25KG for heavy-duty packs up to 25 kg.

Can the checkweigher be integrated with an existing packaging line?

Yes. We configure the infeed height, belt width, reject direction and control interface to match your existing packaging machine and conveyors. We also supply upstream weighing equipment and downstream conveyors from the same factory for a fully integrated line.

What rejection systems are available?

Air jet, air pusher, flipper and drop belt rejection are available. The correct method depends on pack weight, surface material, line speed and whether the reject lane runs beside or below the main conveyor.

How is checkweigher accuracy maintained at production speed?

Original German HBM load cells provide the measurement base, FPGA hardware filters remove conveyor vibration, and intelligent self-learning technology adjusts to product and belt conditions automatically.

What project information is needed for a quotation?

A complete quotation is prepared from pack weight and dimensions, tolerance, line speed, conveyor height, reject direction, product samples and site utility conditions.

Do you support installation and after-sales service for overseas buyers?

Yes. We provide installation guidance, operator training, remote troubleshooting and spare parts support through our full-cycle after-sales service system.
