As a Material Feeding Equipment Manufacturer, Jiaxing K-Line Machinery Co., Ltd. designs and builds the bulk solid handling equipment that connects product intake to weighing, filling and packaging machines. We are a China Material Feeding and Conveying Equipment Factory located in Jiaxing, Zhejiang, producing five conveying series: Z-type bucket elevators, inclined conveyors, screw elevators, single bucket elevators and vacuum loaders. The range uses food-grade PP/ABS buckets and 304 stainless steel frames, offers conveying capacities from 1 to 12 m³/h and supports custom lifting heights for plant-specific layouts.
Our conveying machines are engineered as part of a quantitative automatic packaging system. Control circuits and level sensors start and stop feeding automatically, keeping a steady supply at the machine hopper and preventing overflow. These units serve grain, food, pharmaceutical, feed and chemical industries for vertical or horizontal conveying, and they can be integrated directly with multi-head weighers and packaging machines.
Every quotation starts with the working point: material characteristics, target throughput, lift height, plant layout and the downstream machine to be fed. This lets us state the right series, configuration and control interface before we propose a layout.
Five Conveying Series for Bulk Solid Handling
Each series is positioned for a different combination of material, path and line speed. The table below shows the published range and typical placement in a packaging line.
| Series |
Published capacity |
Construction |
Application fit |
| Z-type Elevator |
1-5 m³/h, 0.75 kW |
Food-grade PP buckets, 304 stainless steel frame |
Auto-feeding to multi-head weighers for snacks, nuts, frozen foods and granules; compact Z-shaped path fits tight plant layouts. |

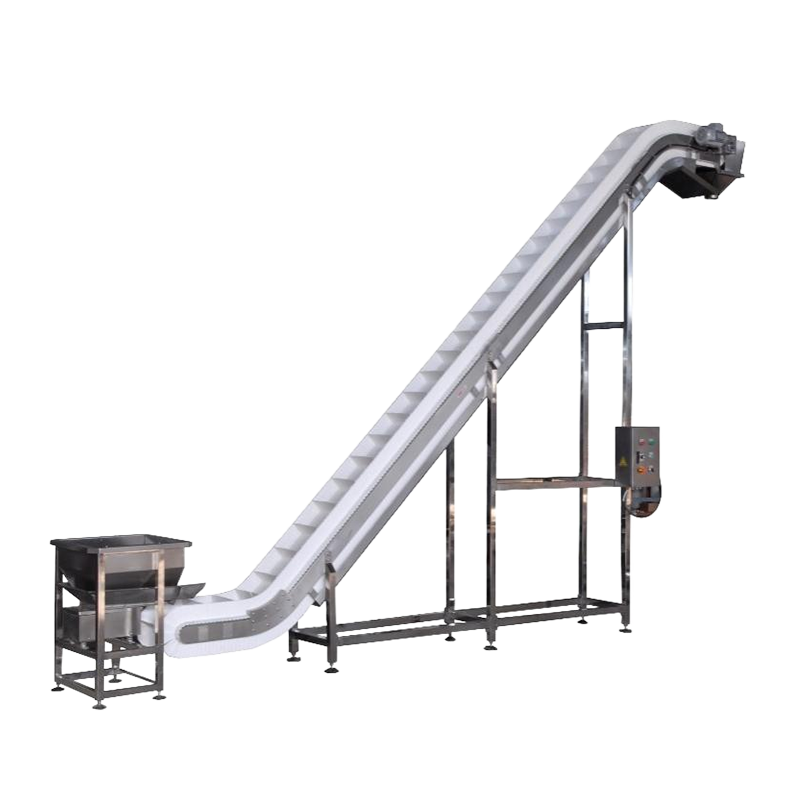

| Inclined Conveyor |
1-3 m³/h, 0.75 kW |
Food-grade PP mesh belt, 60/100 mm baffles, 203.2 mm spacing |
Gentle inclines for fragile or coated product; belt resists high and low temperatures, washes down with clean water and is easy to assemble and disassemble. |

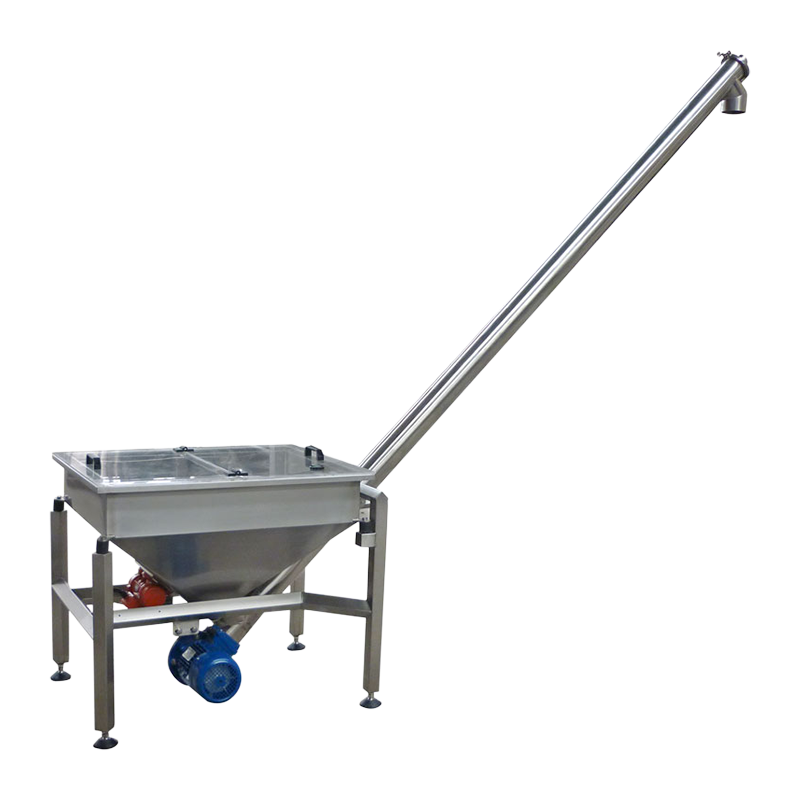

| Screw Elevator |
1-12 m³/h, 0.4-3.03 kW |
SUS304 construction, 304 or PP trough, variable frequency drive |
Powders, granules and small blocks; standard 45 degree angle with 30-60 degree range and lifting heights of 1-5 m. |
| Single Bucket Elevator |
Configured per project |
304 stainless support frame, PP or 304 bucket options |
Intermittent lifting to a platform or hopper where batch transfer matches the line cycle. |

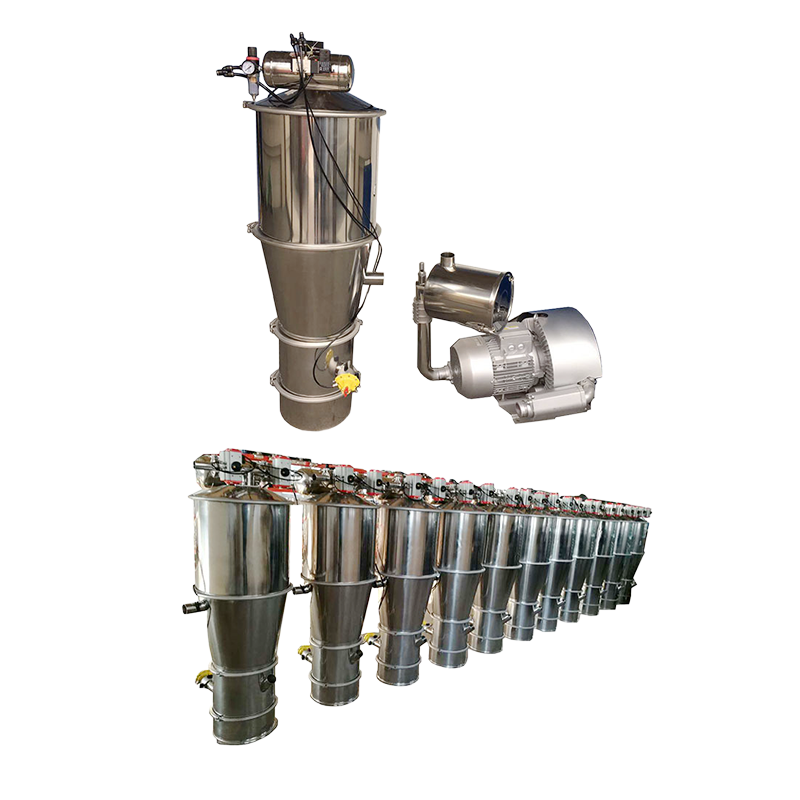

| Vacuum Loader |
Configured per project |
Pneumatic vacuum feeder, stainless/PP contact parts |
Dust-controlled transfer of powder and granular material from sacks, drums or storage into machine hoppers. |
Engineering and Configuration Approach
Our configuration work connects the machine to the material and the line around it. The main variables we evaluate are:
- Material fit: We evaluate bulk density, particle size, flowability, moisture, temperature and breakage sensitivity before selecting bucket, belt or screw.
- Capacity: Published ranges are matched to your m³/h or kg/h target; drive power and bucket or belt pitch are adjusted accordingly.
- Path: Lift height, incline angle, horizontal distance and available floor space define the machine frame and support structure.
- Discharge interface: The outlet is oriented to match the inlet of the multi-head weigher, volumetric filler or packaging machine hopper.
- Controls: Level sensors and control circuits provide automatic feed and stop; screw elevators use variable frequency drive for speed adjustment.
- Hygiene: Food-grade contact materials, sealed covers for powder handling and washable belt options reduce cross-contamination risk.
- Safety: Rotating parts are guarded, and each machine includes a manual stop and an interface point for the line emergency stop circuit.
Automation and Packaging Line Integration
Material feeding equipment is most effective when its control logic is aligned with the weigher and packaging machine. Our machines are supplied with level sensors at the receiving hopper. When the hopper is full, feeding stops; when material drops below the sensor, feeding resumes. This keeps the line running without operator attention.
We can provide a dry contact or PLC-compatible signal to the packaging line controller. For multi-head weigher systems, the Z-type elevator and inclined conveyor are commonly used to maintain a constant weigher hopper level. For powder applications, the screw elevator and vacuum loader offer a more contained transfer path.
Quality, Acceptance and Documentation
R&D, design and manufacturing at Jiaxing K-Line Machinery are supervised by senior technical staff. Our project file for export equipment includes the CE test draft report and related technical documentation where applicable. Each machine is inspected before packing, and the purchase order can include a pre-shipment inspection at our factory.
Installation, Maintenance and Spare Parts
Machines are delivered with an operation manual covering installation, wiring, commissioning and routine maintenance. We also confirm mounting dimensions and support structure requirements on the layout drawing before production. Full-cycle after-sales service covers remote troubleshooting and spare parts supply.
- Keep bucket and belt tracking adjusted as described in the manual.
- Wash PP mesh belt conveyors with clean water when product changes.
- Inspect bucket fasteners and belt tension on Z-type elevators periodically.
- Check screw flight clearance and gearbox lubrication according to the maintenance schedule.
- Keep spare buckets, belts, sensors, bearings and reducers on hand for quick changeover.
Information We Use to Configure Your Solution
Send us the following data with your inquiry, and we will prepare a machine configuration, layout drawing and quotation:
- Product type, bulk density, particle size, moisture and temperature
- Target capacity in kg/h or m³/h, and whether operation is continuous or batch
- Lift height, incline angle, horizontal length and available floor space
- Inlet and outlet interface height, hopper dimensions and number of discharge points
- Food-contact or washdown requirements
- Electrical voltage and frequency, plus compressed air availability for vacuum loading
- Target machine finish, documentation language and any customer inspection requirement
Frequently Asked Questions
Which conveying machine suits my product?
It depends on the material and the path. A Z-type elevator suits granules and fragile food products feeding a weigher. An inclined conveyor suits gentle inclines and washdown areas. A screw elevator handles powders, granules and small blocks. A vacuum loader is the right choice for dust-controlled powder transfer from sacks or drums.
Can these conveyors be connected to an existing packaging line?
Yes. Our control circuits and level sensors can be matched to the PLC of your weigher or packaging machine. We provide the wiring diagram and signal interface points, and we can engineer an adapter hopper or discharge spout to fit your existing equipment.
What food-contact materials do you use?
The range uses food-grade PP/ABS buckets and 304 stainless steel frames. Inclined conveyors use food-grade PP mesh belts. Screw elevators are available with 304 or PP troughs and buckets, allowing the contact surface to match the product and cleaning procedure.
What information do you need for a quotation?
The most useful inputs are material type, bulk density, particle size, target throughput, lift height, incline angle, available floor space, electrical supply and a photo or sketch of the intended installation. With that information we can select the series and confirm the control interface.
Do you support custom lifting heights and angles?
Yes. Z-type elevators, inclined conveyors and screw elevators are configured around the plant layout. Screw elevators have a standard 45 degree angle and 1.85 m lifting height, but we configure 30-60 degree angles and 1-5 m heights to match the working point.
