Automatic Premade Pouch Packing Machine Manufacturer
Jiaxing K-Line Machinery Co., Ltd. builds the Automatic Premade Pouch Packing Machine manufacturer category around rotary 8-station and 10-station platforms. We are a direct factory and OEM supplier in Jiaxing, China, and we configure each machine for the pouch type, filling method and line speed the product actually needs.
The standard range covers bag widths from 50 mm to 300 mm, filling weights up to 2500 g and speeds up to 120 bags/min. The same platform can handle flat pouches, back-seal bags, stand-up pouches with bottom gussets, and zipper bags for food and daily-chemical projects.
Range and Positioning
We offer seven machine platforms in this product family, all PLC-controlled and built around rotary cam-driven indexing. The name indicates the pouch task: KL8 denotes an 8-station base, KL10 a 10-station base, while S models are configured for dual-lane or dual-bag output.
Our available Packaging Equipment range includes these premade pouch platforms:
| Model |
Platform / Pouch Fit |
Typical Project Fit |
| KL8-240E |
8-station rotary; flat and back-seal pouches |
General filling duty up to medium pouch size |
| KL8-300E |
8-station; large pouch width to 300 mm |
Large pouches and heavier fill weights |
| KL10-160E |
10-station; small pouch high speed |
High-rate small packs |
| KL10-220E |
10-station; stand-up pouch with bottom gusset |
Stand-up pouch lines |

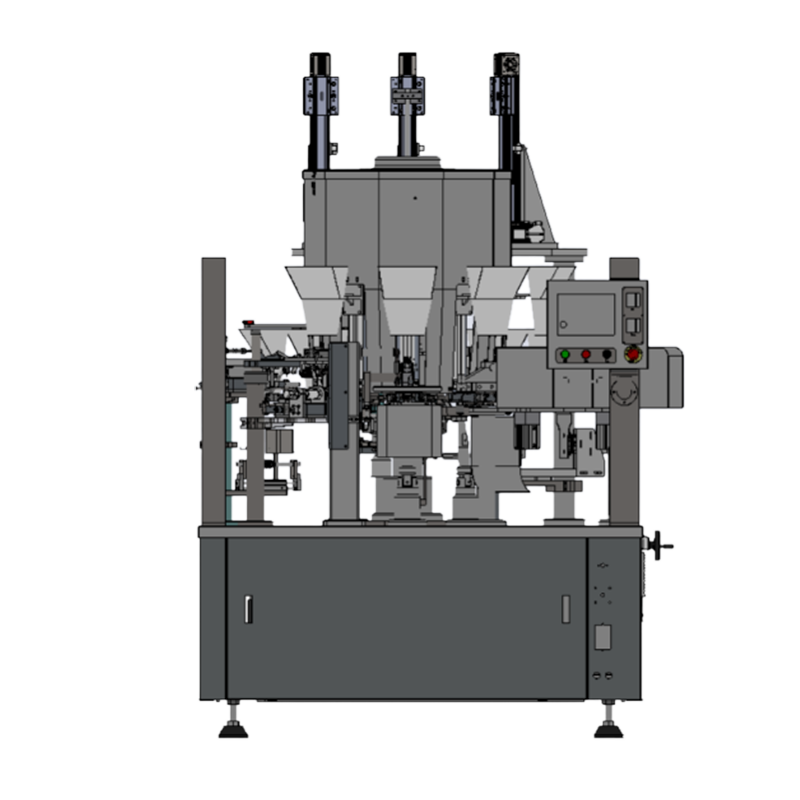

| KL10-GS220E |
10-station; zipper / resealable pouch |
Zipper closure and premium packaging |
| KL8-S120 |
8-station; dual-lane output |
Smaller pouches running in parallel |
| KL8-S170B |
8-station; dual bag per cycle |
Higher piece-count output on standard pouches |
Process and Application Fit
This line fits products that benefit from a pre-formed bag look: confectionery, puffed snacks, biscuits, nuts, frozen ingredients, pet food, agricultural sideline products, chemical raw materials and daily-chemical items. The pouch is picked from a magazine, opened, filled, sealed and discharged in one rotary cycle, which keeps the bag mouth stable for granular, powder and piece products.
If a formed pillow bag is more economical for your product, our Vertical Packaging Machine line is the alternative; many plants use both technologies on different SKUs.
Pouch and product considerations
- Film type should be heat-sealable on the inner layer; pouch stiffness influences vacuum pick-up and opening reliability.
- Zipper pouches require precise zipper alignment during opening and sealing; GS models are tooled for that closure.
- Bottom gussets for stand-up pouches need a forming station matched to gusset depth.
- Filling accuracy depends on product flow; we match the feeding and dosing unit to the product, not only to the pouch.
Controls, Integration and Engineering Value
The machine specification begins with pouch width, pouch height, fill weight and target speed. The rotary drive uses groove cams and centralized lubrication for stable indexing and longer service life. PLC touchscreen control, intelligent bag opening detection, empty bag recycling, oil-free vacuum pumps and a waterproof design are standard on the range.
On the feeding side, we integrate weighing and dosing equipment directly. A Multi-head Weigher is our usual match for piece products such as snacks, nuts and frozen items; screw weighers suit powders, volumetric cups suit uniform free-flowing products, and linear weighers handle larger fills. Downstream, we can add checkweigher, metal detector or X-ray inspection after sealing, plus conveying, rotary tables and case packing equipment when a full line is required.
Quality Assurance, Installation and Support
Research, design and manufacturing are supervised by senior technical staff, and the project file can include CE test draft report and relevant patent documentation. Before dispatch we verify the machine with customer pouch and product samples, checking bag opening, fill accuracy, seal quality and achieved cycle time.
Our proposal includes the machine layout drawing, utility requirements, delivery scope, after-sales support and spare-part guidance. We provide training and commissioning support through our standardized full-cycle after-sales service system.
Information We Use to Configure Your Solution
- Pouch sample or drawing: type, width, height, gusset, zipper, film structure
- Product sample: bulk density, particle size, flow behavior, temperature, dust or moisture
- Fill weight per pouch and target output in bags/min
- Existing upstream feeding, weighing or dosing equipment
- Downstream equipment: checkweigher, metal detector, case packing, conveyors
- Available electrical supply, compressed air, plant layout and headroom
- Control language, HMI requirements and compliance documentation
Frequently Asked Questions
Which pouch styles can this range handle?
Flat pouches, back-seal bags, stand-up pouches with bottom gussets and zipper bags, within bag widths of 50 to 300 mm. We configure the magazine, opening station and sealing tooling to the selected style.
What speed and fill weight can you offer?
Up to 120 bags/min on the high-speed small pouch configuration and filling weights up to 2500 g. Practical speed depends on pouch size, film stiffness, product flow and dosing unit response.
Can the machine be integrated with a multi-head weigher?
Yes. We commonly supply the premade pouch machine with a Multi-head Weigher, screw weigher, volumetric cup or linear weigher, and add checkweighing or metal detection after sealing.
What information do you need for a quotation?
A pouch sample or drawing, product sample, target fill weight, required output, existing line equipment, and utility conditions at the plant. From that we define the model, tooling, integration points and project scope.
Are custom configurations available?
Yes. We work as a custom OEM supplier, adapting the filling station, pouch opening mechanism, auxiliary feeding and downstream interfaces to the project requirement.
What after-sales support do you provide?
Our standardized full-cycle after-sales service system covers commissioning support, remote troubleshooting and spare-parts service for domestic and exported lines.
